TiN Sputtering Targets: Enhancing Tool Life through Revolutionary Coatings

Introduction

TiN sputtering targets have played a crucial role in enhancing the performance of the tools. They are used in high-end coatings to achieve wear resistance and tool life. There are plenty of examples in the shop where a simple coating creates enormous benefits. Let us touch upon the use of TiN sputtering targets in improved machine tools.

What Is A TiN Sputtering Target?

A TiN sputtering target is a titanium nitride block used in the sputtering process. In the process of sputtering, atoms are discharged from the target material and then deposited on a tool surface as a thin film. The film adds strength and reduces friction. They are used to solve typical issues of tool wear and performance.

Key Properties of TiN Coatings

Titanium nitride coatings possess several advantageous properties. One of them is hardness. TiN is typically between 2000 and 2500 on the Vickers hardness scale. This hardness is optimally suited for withstanding wear and tear on tools.

Another desirable feature is a low friction coefficient. The lower the friction value, the lower the energy and heat loss in operation. This can be extremely critical for machining at high speeds.

TiN coating also has an excellent resistance to corrosion. Despite a humid condition or exposure to harsh fluids, the coating protects the underlying material.

The golden hue of the coating is also a surface indicator of quality. Its beauty together with the performance improvement is appreciated by numerous users. TiN coating not only improved tool life but gave the tool a shiny look.

Applications in Machine Tooling

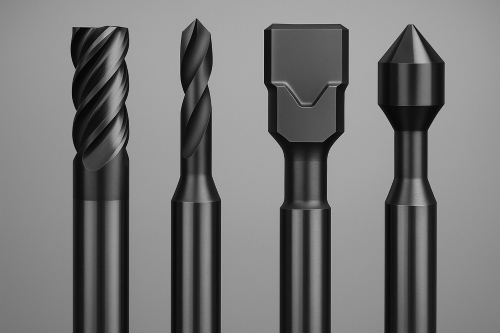

Machine tools are subjected to high stress and friction. TiN sputtering targets are used for the coating of cutting tools like end mills, drills, and lathes. The coating decreases the rate of wear significantly. In one common situation, a TiN-coated milling cutter is several times more durable than an uncoated cutter.

Typically, producers use a thickness of 2 to 4 micrometers. This range balances strength and retaining sharp tool edges.

Advantages of TiN Sputtering over Other Processes

There are specific advantages of TiN sputtering over other coating techniques such as plasma spraying or chemical vapor deposition.

First, sputtering can produce very thin and uniform coatings. This uniformity is crucial when even small lack of consistency can result in premature failure of the tool.

Second, the process happens at lower temperatures. This protects the tool from excess heat damage during coating.

Third, deposition rate is under good control. In practice, this results in reproducible and uniform coatings.

In most cases, the benefits of proper control and consistency reveal themselves in lower maintenance cost and longer production runs.

Other Applications of TiN Sputtering Target

Apart from machine tooling, TiN sputtering targets also have a number of other applications. In electronics, TiN films are utilized as diffusion barriers for integrated circuits.

Aesthetic finishes of consumer goods sometimes use TiN to give the shiny golden color. The finish can be found on watch cases and other accessories.

Optical equipment also benefits from TiN films. The nature of the material allows for the inclusion of increased reflectivity and durability in certain optical parts.

Even in auto production, TiN coats are utilized on engine components to reduce friction and extend service life.

Conclusion

TiN sputtering targets are further enhancing tool performance across different industrial applications. The resulting coatings are of high hardness, have better wear resistance, and low friction. All this is for their application in machine tooling, electronics, and cosmetic applications. For more information, please check Stanford Advanced Materials (SAM).

Frequently Asked Questions

F: What is the role of TiN sputtering targets in coating?

Q: They provide a consistent layer of titanium nitride to enhance the hardness of tools and reduce wear.

F: How does TiN improve the life of machine tools?

Q: Through high hardness and low friction, it reduces wear even for continuous use.

F: Are TiN coatings usable beyond machining?

Q: Yes, in electronics, ornaments, and optical equipment due to their resistance.
