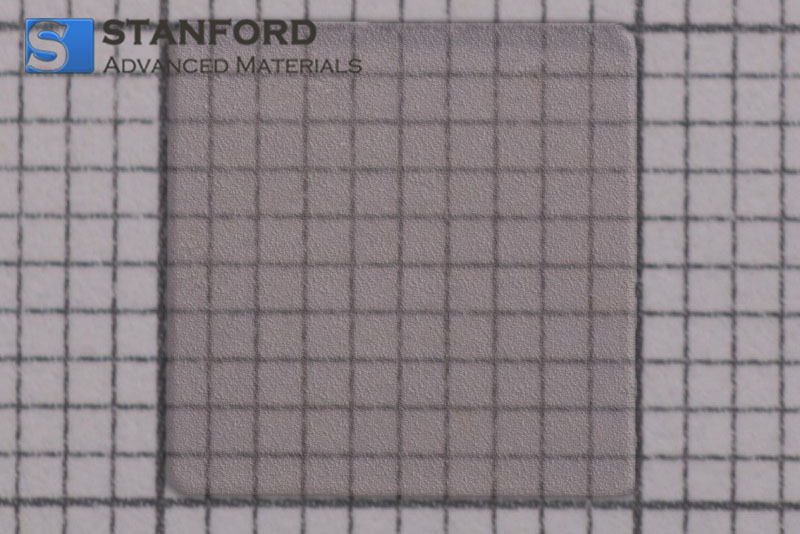

AlN Single Crystal Substrate Description

AlN single crystal substrate is a wide bandgap semiconductor material with exceptional characteristics.

The band gap is 6.2eV and has a direct band gap. It is an important blue and ultraviolet light-emitting material; High thermal conductivity, high melting point, high resistivity, strong breakdown field and low dielectric coefficient. It is an excellent electronic material for high temperature, high frequency and high-power devices; AlN oriented along the c-axis has very good piezoelectricity and high-speed propagation properties of surface acoustic waves, and is an excellent piezoelectric material for surface acoustic wave devices.

In view of the excellent physical properties of the above-mentioned AlN materials, AlN crystals are ideal substrates for GaN, AlGaN and AlN epitaxial materials. Compared with sapphire or SiC substrates, AlN and GaN have higher thermal matching and chemical compatibility, and the stress between the substrate and the epitaxial layer is smaller. Therefore, when AlN crystal is used as a GaN epitaxial substrate, the defects in the device can be greatly reduced Density, improve the performance of the device, have a good application prospect in the preparation of high temperature, high frequency, high power electronic devices

AlN Single Crystal Substrate Specifications

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

AlN Single Crystal Substrate Applications

Aluminum nitride (AlN) single crystal substrates are prized for their high thermal conductivity, excellent electrical insulation, and wide bandgap, making them essential in various advanced applications. In high-frequency and high-power electronics, they are used in RF and microwave devices and power electronics for efficient heat dissipation. In optoelectronics, they support UV LEDs and laser diodes with excellent thermal management. MEMS devices benefit from AlN substrates' piezoelectric properties and thermal stability. AlN substrates are crucial in semiconductor devices, particularly for the growth of GaN and AlGaN semiconductors, enhancing high-power, high-frequency, and high-temperature device performance. They are also used in piezoelectric devices like SAW and BAW filters and oscillators, advanced photonic devices, and heat spreaders in high-power applications. Additionally, AlN substrates are employed in high-temperature sensors, piezoelectric actuators, quantum computing qubit substrates, and solid-state lighting solutions, including LEDs and laser-based systems. Their versatility and exceptional properties make AlN single crystal substrates fundamental to the development of next-generation electronics, optoelectronics, MEMS, photonics, and thermal management technologies.

AlN Single Crystal Substrate Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Clean bags, Single or Multi-chip Wafer Box, Carton, Wooden Box, or Customized.

FAQs

Q1. Why is AlN a preferred material for substrates in power electronics?

Aluminum Nitride (AlN) is highly preferred for power electronics substrates because of its exceptional thermal conductivity (around 200-300 W/m·K), which helps efficiently dissipate heat generated by high-power devices. Additionally, AlN is electrically insulating, which makes it suitable for high-power applications without short-circuit risks. Its ability to withstand high temperatures and harsh environments further adds to its popularity.

Q2. What are the key properties of AlN Single Crystal Substrates?

Key properties of AlN Single Crystal Substrates include:

High thermal conductivity: One of the best among insulating materials, essential for power electronics and heat-sensitive devices.

Electrical insulation: AlN is an excellent electrical insulator, preventing unwanted current flow in sensitive applications.

Piezoelectric properties: AlN exhibits strong piezoelectric behavior, which makes it ideal for sensors and actuators.

Wide bandgap: AlN has a large bandgap of around 6.2 eV, which allows it to perform well in high-voltage and high-temperature environments.

Mechanical strength: AlN substrates have high mechanical strength and hardness, making them durable for harsh conditions.

Q3. How does AlN compare to other substrates like Sapphire or Silicon in electronics?

AlN has several advantages over materials like Sapphire and Silicon in certain applications:

Thermal conductivity: AlN has significantly higher thermal conductivity than both Sapphire and Silicon, making it better suited for high-power electronics where heat dissipation is critical.

Electrical insulation: Unlike Sapphire, which is not an effective electrical insulator, AlN is a good insulator, ideal for high-voltage applications.

Piezoelectric properties: AlN has superior piezoelectric properties compared to other materials, making it better suited for sensors, actuators, and resonators.

Q4. How is AlN Single Crystal Substrate grown?

AlN Single Crystal Substrate is typically grown using the Kyropoulos Method (Pulling Method), which is a widely used technique for producing high-quality single crystals. The process involves the following steps:

• • Starting Material: High-purity aluminum and nitrogen sources are used to form AlN.
  • Crystal Growth: The growth process occurs by slowly pulling a seed crystal from a molten AlN melt under controlled conditions. This controlled pulling allows the formation of a high-quality, single crystal.
  • Controlled Environment: The Kyropoulos method requires precise control of temperature, pressure, and atmosphere (typically nitrogen gas) to ensure the formation of pure, high-quality AlN crystals.
