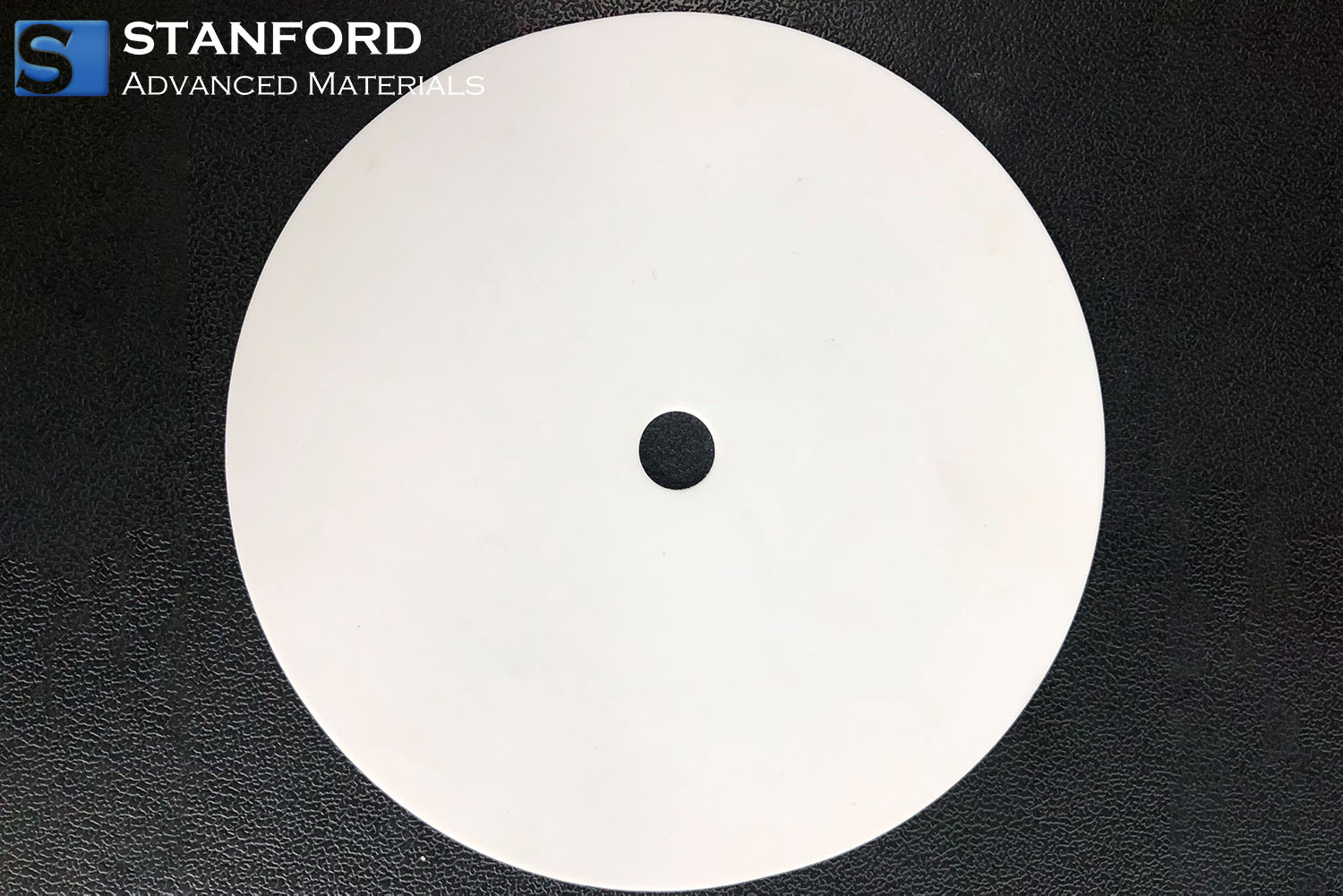

Polished Alumina Substrate Al2O3 Description

Polished alumina substrate refers to a ceramic material consisting of a smooth and polished surface made from alumina, also known as aluminum oxide (Al2O3). It provides a smooth and flat surface with excellent electrical insulation and high thermal conductivity. Alumina substrates are widely used in various industries for their excellent electrical insulation properties and high thermal conductivity.

Polished Alumina Substrate Al2O3 Specifications

Polished Alumina Substrate Al2O3 Applications

Polished Alumina Substrates (Al2O3) are integral components with versatile applications across various industries, owing to their superior mechanical, thermal, and electrical properties coupled with a smooth surface finish. In electronics and semiconductor manufacturing, they serve as reliable substrates for integrated circuits, benefiting from high dielectric strength and compatibility with microfabrication processes. These substrates are also essential in optics and photonics and are used for optical windows and laser systems due to their optical transparency across UV to IR spectra and thermal stability. In medical and dental fields, polished alumina substrates find use in dental prosthetics, implants, and surgical instruments, leveraging their biocompatibility and resistance to wear and sterilization. They are crucial in high-performance ceramics as substrates for sensors, heaters, and insulators, providing mechanical strength and thermal resistance. Industrial applications utilize these substrates for wear components like bearings and seals, as well as electrical insulators in high-temperature and high-voltage environments. Additionally, in research and development, polished alumina substrates support materials research and surface science studies, facilitating investigations into diverse material properties and surface interactions.

Polished Alumina Substrate Al2O3 Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

FAQs

Q1: For a high-power microwave circuit, what are the practical limits of Alumina's thermal conductivity, and how does its CTE affect reliability in bonded assemblies?

Alumina's thermal conductivity (typically ~30 W/m·K) may be a limiting factor in very high-power density designs. Its coefficient of thermal expansion (CTE, ~6.5-8.0 x 10⁻⁶/°C) can cause significant stress and potential delamination when directly bonded to low-CTE materials like silicon (CTE ~2.6 x 10⁻⁶/°C) during thermal cycling.

Q2: How does the grain size and purity of the alumina substrate impact the performance and adhesion of thin-film metallization?

Fine, uniform grain structure and high purity (>99.6% Al₂O₃) are critical. Larger grains or porosity can create a rough surface topology, leading to non-uniform film deposition, increased conductor loss at high frequencies, and reduced bond strength. High-purity, fine-grained alumina also offers superior mechanical strength and wear resistance.

Q3: What is the risk of subsurface damage from polishing, and how can it affect the mechanical strength of a thin substrate?

Grinding and polishing can introduce subsurface micro-cracks and plastic deformation. For a thin, mechanically loaded substrate, this damage layer can become a significant fraction of the total thickness, drastically reducing its effective flexural strength and potentially leading to catastrophic failure.

Comparison
