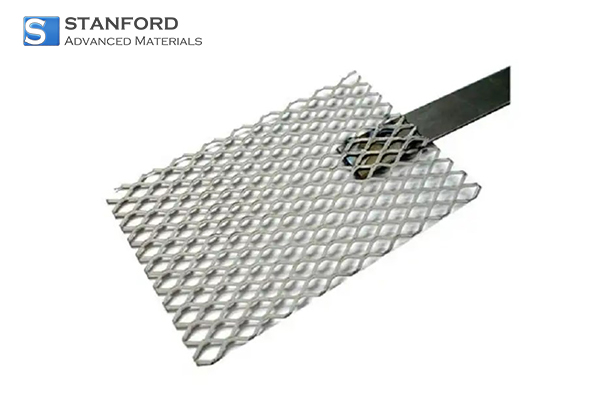

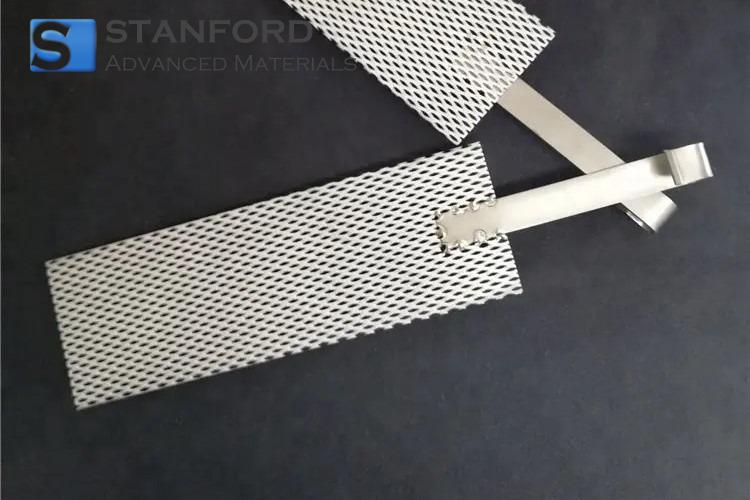

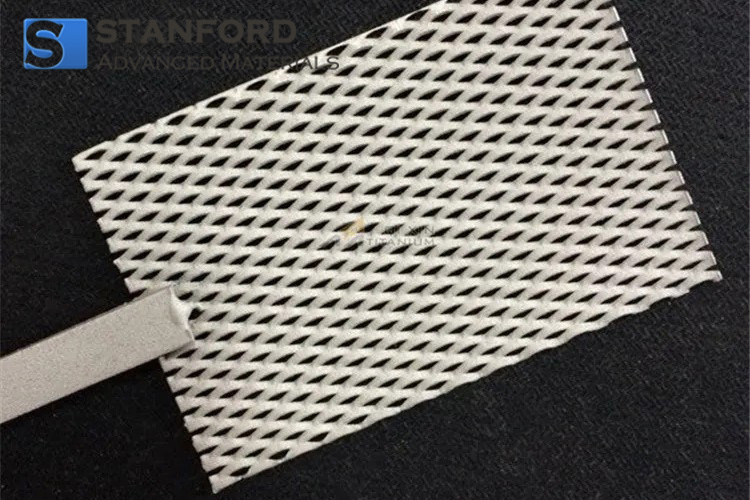

Platinized Titanium Anode Description

Platinized Titanium Anode consists of a titanium anode coated with platinum or platinum metal oxides. These anodes act as inert and non-consumable electrodes, making them exceptionally long-lasting. Moreover, they remain insoluble in the electrolyte, even under the conditions present during electrolysis.

Platinum is an ideal anode material due to its outstanding conductivity and low consumption rate. However, given its status as a precious metal, a cost-effective approach is often employed by electroplating a thin layer of platinum over a highly corrosion-resistant substrate. Titanium, known for its ability to form an insulating oxide film under anodic conditions, is a commonly used anode substrate.

Platinized Titanium Anode Specifications

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Platinized Titanium Anode Applications

Platinized Titanium Anodes have a wide range of applications due to their unique properties, making them suitable for various industries and processes. Some of the key applications of Platinized Titanium Anodes include:

• Electroplating: Platinized Titanium Anodes are commonly used in electroplating processes for the deposition of metals onto a substrate. They provide excellent conductivity and stability, ensuring uniform and high-quality plating results.
• Cathodic Protection: Platinized Titanium Anodes are employed in cathodic protection systems to prevent corrosion of metal structures, such as pipelines, storage tanks, and reinforced concrete structures. They act as inert anodes, releasing electrons to protect the structures from corroding by reducing the likelihood of oxidation.
• Electrolysis: Platinized Titanium Anodes play a vital role in various electrolytic processes, such as the production of chlorine and sodium hydroxide in the chloralkali industry and metal electrowinning processes.
• Water Treatment: These anodes are used in water treatment applications to oxidize contaminants and disinfect water. They help in removing impurities and pathogens, ensuring safe drinking water.
• Electrodialysis: Platinized Titanium Anodes are utilized in electrodialysis processes, which involve the selective separation of ions from a solution using an electric field.
• Electrochemical Synthesis: In organic and inorganic chemical synthesis, Platinized Titanium Anodes are employed to facilitate electrochemical reactions and produce specific compounds.
• Electrowinning: Platinized Titanium Anodes are used in metal electrowinning processes, where metals are extracted from their ores through electrolysis.
• Research and Laboratory: Platinized Titanium Anodes are utilized in various research and laboratory applications, such as in the development of new electrochemical processes and experiments.

Platinized Titanium Anode Advantages

• Effective, environment-friendly
• High current efficiency
• High anti-corrosion property & lasting working life
• Keep the operating voltage stable
• Small size & lightweight
• Recoatable & Repetitive titanium material

Platinized Titanium Anode Packaging:

Our Platinized Titanium Anode is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.

Q1: For electroplating applications, what are the main operational benefits of using a Platinized Titanium Anode compared to traditional soluble anodes (like nickel balls or copper)? What specific problems does it solve?

A1: The core advantage is that it is a dimensionally stable insoluble anode (DSA), which fundamentally improves process control and operational efficiency:

Stabilizes Metal Ion Concentration: Soluble anodes continuously dissolve, causing the concentration of the primary metal ions in your plating bath to constantly increase. This requires frequent additions of balancing agents and handling of impurities. Platinized Titanium does not dissolve; it only catalyzes oxygen evolution. This helps you maintain a stable metal ion concentration, reducing the need for analytical adjustments and resulting in more consistent plating quality.

Eliminates Anode Sludge: The anode sludge generated by soluble anodes is a common cause of rough, nodulated, or pitted deposits. Using a smooth Platinized Titanium anode virtually eliminates contamination from anode sludge, enabling you to achieve smoother, high-quality finishes with fewer rejects.

Simplifies Operations: You eliminate the need to procure, store, and handle bulky metal anodes or anode baskets and bags. This streamlines your inventory management and shop-floor operations.

Q2: We are using these anodes for electrolyzing industrial wastewater containing chlorides. What factors most significantly impact the anode's service life, and how do we know when it needs to be replaced?

A2: In chloride-containing environments, service life is primarily determined by:

Coating Wear: The platinum coating undergoes a very slow electrochemical wear process as it catalyzes the chlorine evolution reaction. Additionally, suspended solid particles in the wastewater can cause physical abrasion of the coating. Operating at high current densities will accelerate this wear.

Substrate Passivation: If the coating is locally damaged (e.g., by a sharp impact), the exposed titanium substrate can form a non-conductive oxide film under the electrolytic conditions, rendering the anode ineffective.

The signal for replacement is clear:

When you observe an abnormal and persistent increase in cell voltage (under constant current density and unchanged solution conditions) that cannot be resolved by cleaning the anode, it typically indicates that the active coating is depleted or the substrate has passivated, and the anode requires replacement.

Q3: We are considering Platinized Titanium Anodes for a seawater electrolysis (chlorination) system for biofouling prevention. How stable is it in raw seawater with its fluctuating pH and organic content?

A3: Platinized Titanium is an excellent choice for this demanding application. Its stability stems from:

Superior Chlorine Resistance: The platinum coating has high catalytic activity and selectivity for the chlorine evolution reaction and is inherently highly resistant to chloride-induced corrosion. This is the fundamental requirement for its use in seawater.

Titanium's Innate Corrosion Resistance: The titanium substrate forms a highly protective passive oxide layer, giving it exceptional resistance to pitting and corrosion in chloride environments, providing a robust foundation for the coating.

Robustness to Water Quality: While extreme pH levels and organic impurities can have a minor effect on the long-term coating wear rate, its overall chemical resistance is far superior to many alternative materials. For maximum lifespan, ensure the system design includes proper cathodic protection to prevent any potential localized pitting of the titanium substrate during system shut-downs.
