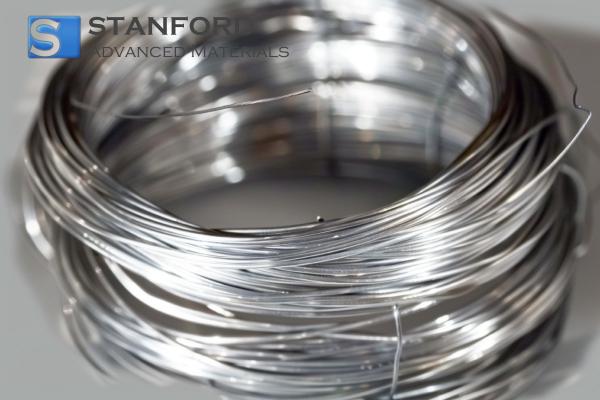

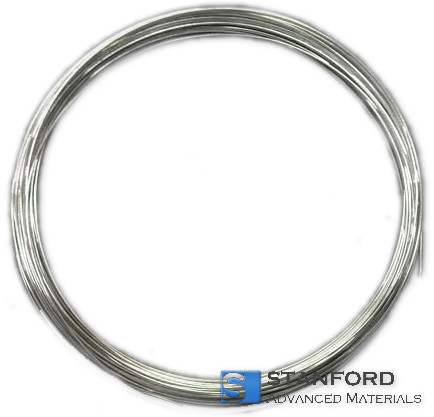

Description of Iridium Wire

Iridium is a rare, precious metal that is hard, brittle, and has low ductility, which makes it a difficult material to work with. In appearance, it is a lustrous, silvery metal. As might be expected from its position in the periodic table, iridium is stable to air and water and is not attacked by any acids, including "aqua regia." Iridium wire is a thin wire-like iridium metal. The resistivity of the iridium wire is 6.03×10^-2Ωmm^2/m, the tensile strength is 1493MPa, and the elongation is 10%-20%. The iridium wire can be used as a high-temperature oxidation-resistant thermocouple material and filament material.

Specification of Iridium and Iridium Alloy Wires

Properties

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Iridium Wire Applications

1. Electrical Spark Discharge: Iridium Wire is commonly used in the manufacture of electrodes for electrical spark discharge processes, such as electrodes for cutting and machining materials in electrical discharge machining, and as ignition electrodes in spark plugs.

2. Chemical reaction catalysts: Iridium metal has good catalytic properties in certain chemical reactions, so Iridium Wire is often used to make catalysts for chemical reactions such as redox reactions and organic synthesis.

3. Medical Devices: Due to its biocompatibility and corrosion resistance, Iridium Wire has certain applications in the manufacture of medical devices, such as implantable medical devices and medical electrodes.

4. Thermocouples: Iridium Wire is often used to make high-temperature thermocouples to measure temperatures in high-temperature environments due to its high-temperature properties and stability.

5. Aerospace industry: In the aerospace industry, Iridium Wire is used to manufacture components that require high temperatures and corrosion resistance, such as rocket nozzles and gas turbine components.

Iridium Wire Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customized.
