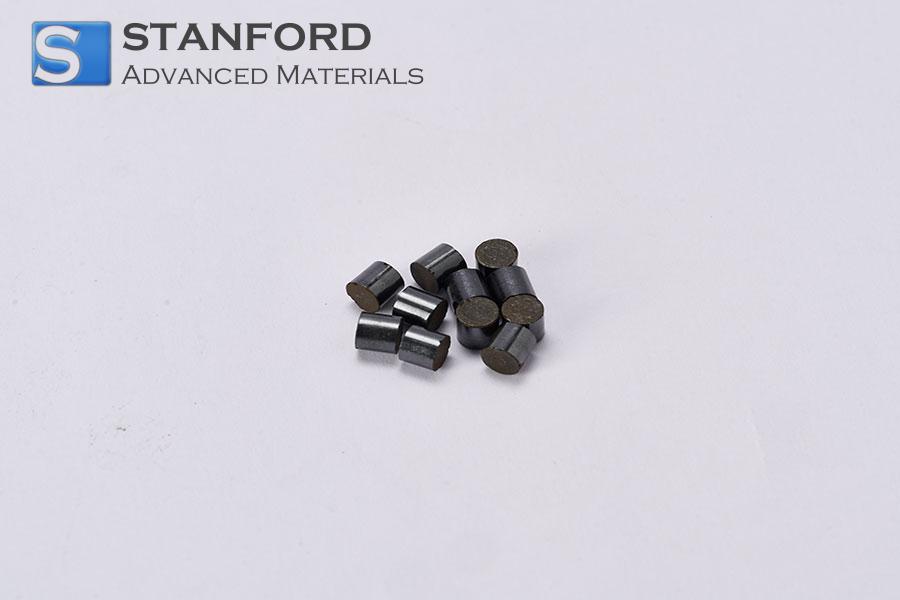

Low Pressure Methanol Synthesis Catalyst Description

Low Pressure Methanol Synthesis Catalyst is mainly suitable for synthesizers such as low-pressure methanol synthesis devices that use natural gas, coke oven gas, refinery gas, naphtha, coal, and oilfield gas as raw materials. Due to the addition of special additives, the catalyst has a higher yield under lower operating temperature and pressure, and the selectivity is further improved, while the heat resistance of the catalyst is improved, and the service life of the catalyst is prolonged.

Low Pressure Methanol Synthesis Catalyst Specifications

Low Pressure Methanol Synthesis Catalyst Applications

1. Chemical Manufacturing:

This catalyst is pivotal in modern methanol production, serving as the backbone for large-scale plants that manufacture methanol as a primary chemical intermediate. The methanol produced is predominantly used to synthesize formaldehyde, acetic acid, and methyl methacrylate (MMA), which are essential building blocks for producing resins, plastics, paints, adhesives, and synthetic fibers.

2. Energy and Fuel Production:

In the energy sector, this catalyst enables the efficient and economical production of methanol for fuel applications. It is key to generating methanol for gasoline blending, serving as a clean-burning fuel for specialized transportation, and acting as a primary feedstock for producing dimethyl ether (DME), a clean-burning alternative to diesel and liquefied petroleum gas (LPG).

3. Distributed and Small-Scale Synthesis:

The low-pressure operation greatly reduces the complexity and cost of methanol synthesis units. This makes the catalyst ideal for smaller-scale, distributed production facilities. These plants can effectively utilize stranded or variable feedstocks, such as biogas from landfills or agricultural waste, and CO2 captured from industrial flue gases, supporting the production of renewable methanol and promoting a circular carbon economy.

Low Pressure Methanol Synthesis Catalyst Packaging

Our Low Pressure Methanol Synthesis Catalyst is carefully handled during storage and transportation to preserve the quality of our product in its original condition.

FAQs

Q1: A major advantage cited for low-pressure catalysts is reduced energy cost. Beyond lower compression energy for the syngas, how does this catalyst contribute to overall operational efficiency and stability in a continuous plant setting?

A1: The operational benefits extend well beyond initial compression savings. Due to its high intrinsic activity at lower temperatures and pressures, this catalyst promotes superior reaction selectivity towards methanol. This means significantly fewer by-products like higher alcohols (ethanol, propanol) or hydrocarbons. This leads to:

Reduced Purification Load: The crude methanol product is purer, lessening the distillation and separation burden downstream. This translates to lower energy consumption in the purification columns and higher overall plant throughput.

Enhanced Stability: High selectivity minimizes the formation of waxy hydrocarbons or other compounds that can foul heat exchanger surfaces or the catalyst itself, leading to more stable reactor pressure drop and heat transfer efficiency over a long campaign.

Q2: We are interested in utilizing a syngas derived from biomass gasification, which can have a variable H₂/(2CO + 3CO₂) ratio and contain trace contaminants. How flexible is this catalyst to such non-ideal, fluctuating feedstocks?

A2: This catalyst is designed with a degree of robustness for such alternative feedstocks, but its performance is tightly linked to feed gas conditioning.

Stoichiometry Flexibility: It can handle a range of synthesis gas compositions. However, the module (H₂ - CO₂) / (CO + CO₂) must be carefully monitored and adjusted. A significant and sustained deviation from the ideal ratio (~2.05) will lead to suboptimal conversion, higher recycle gas rates, and can affect catalyst selectivity. Supplemental hydrogen may be required.

Contaminant Tolerance: The catalyst's tolerance to trace poisons like sulfur, chlorides, or metals is limited. Even at low pressure, these contaminants will irreversibly deactivate active sites. Therefore, the performance and lifespan when using biomass syngas are highly dependent on the effectiveness of your upstream gas cleaning and purification systems, which must be designed to handle the specific impurity profile.

Q3: What are the primary indicators we should monitor to proactively manage catalyst health and predict the optimal timing for a reactor shutdown, rather than reacting to a sudden performance drop?

A3: Proactive catalyst management is key to maximizing value. The primary indicators form a clear trendline:

Temperature Rise for Constant Conversion: This is the most critical sign. As catalyst activity naturally declines over time, you will need to gradually increase the reactor's inlet temperature to maintain the same level of CO+CO₂ conversion. Tracking the rate of this temperature increase allows you to forecast the end-of-life.

Increasing By-product Formation: A noticeable rise in the concentration of by-products (e.g., ethanol, ethyl acetate) in the crude methanol can indicate that the catalyst's selective pathways are degrading, often as a precursor to a more significant activity drop.

Pressure Drop Increase: A gradual rise in reactor pressure drop suggests physical degradation of the catalyst pellets or the buildup of carbonaceous deposits/fines, which warrants investigation.
