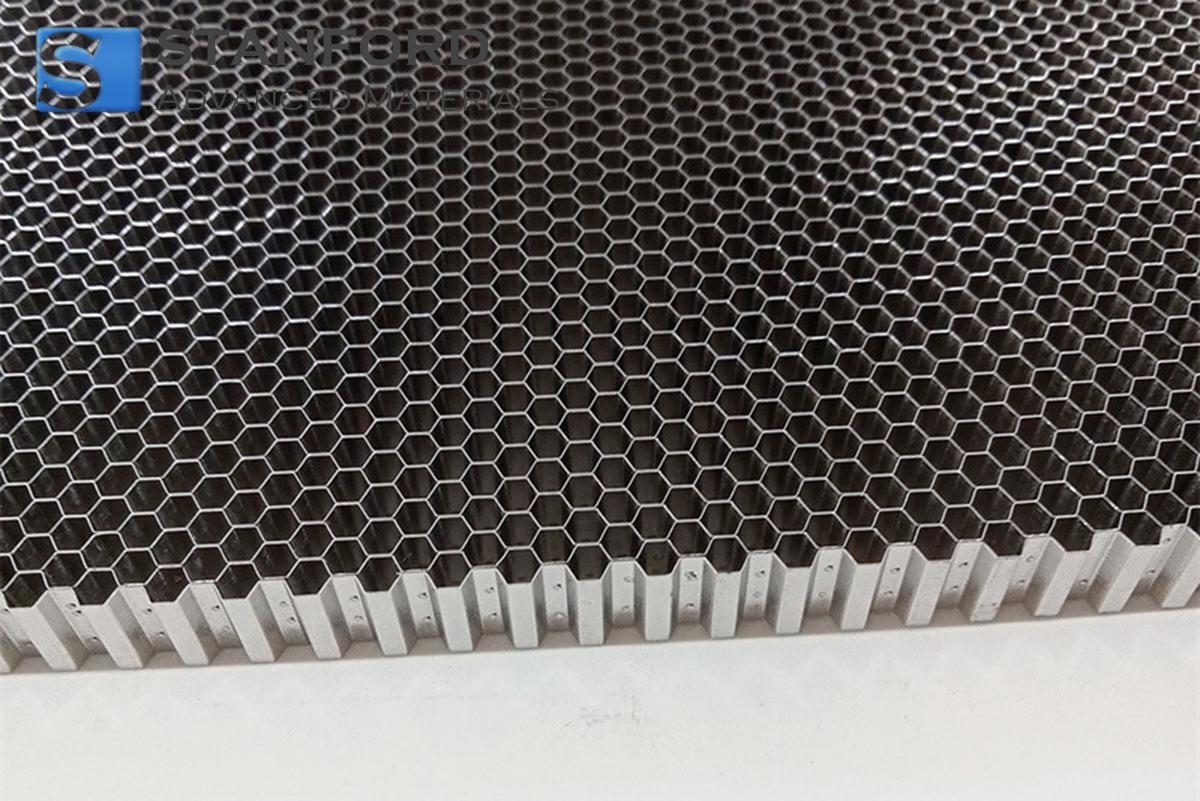

SS6118 Stainless Steel Honeycomb

Catalog No.	SS6118
Material	Stainless Steel (304 / 316 / 321 available)
Shape	Rectangle, Round, or customized
Thickness	0.05-0.2 mm, or customized
Density	100 – 500 kg/m^3
Applicable Temperature Range	~815°C (1500°F)

Stanford Advanced Materials (SAM) manufactures high-quality stainless steel honeycomb for demanding applications in aerospace, automotive, marine, architecture, and industrial processing. Our honeycomb combines the corrosion resistance and mechanical strength of stainless steel with a lightweight hexagonal cell structure, offering exceptional stiffness-to-weight ratio and energy absorption.

INQUIRY

Description

Specification

SDS

Reviews

Grade	Key Features	Typical Applications
304	General-purpose corrosion resistance	Architectural panels, industrial filters
316	Enhanced corrosion resistance (marine grade)	Marine structures, chemical processing
321	Stabilized for high-temperature service	Exhaust systems, heat exchangers

Grade	Key Features	Typical Applications
304	General-purpose corrosion resistance	Architectural panels, industrial filters
316	Enhanced corrosion resistance (marine grade)	Marine structures, chemical processing
321	Stabilized for high-temperature service	Exhaust systems, heat exchangers

Compare Similar Items

Show Differences

This Item

SS6118 Stainless Steel Honeycomb

Add to List

Material

Stainless Steel (304 / 316 / 321 available)

Shape

Rectangle, Round, or customized

Thickness

0.05-0.2 mm, or customized

Density

100 – 500 kg/m^3

Applicable Temperature Range

~815°C (1500°F)

SS1219 316L Stainless Steel Strip (SS316L Strip)

Add to List

Dimensions

Customized

Material

316L

Form

Strip

M.O.Q

100kg

PC1316 Precision Casting (Stainless Steel)

Add to List

Material

Stainless Steel

Composition

Fe-2Ni, Fe-8Ni; 316L, 304L, 17-4PH, 420, 440C

Shape

Customized

MF1446 Stainless Steel Fiber

Add to List

Dimensions

4 – 25 um

Material

Stainless Steel / 316 L/ Per requested

Synonyms

Stainless Steel Fiber, SS Fiber

FAQ

What is the difference between expanded and corrugated stainless steel honeycomb?

Expanded honeycomb is made by slitting and expanding a single sheet, producing a diamond-shaped cell. It is lower cost but has less strength in one direction.
Corrugated honeycomb is made by stacking corrugated foils, producing hexagonal cells with isotropic strength. It is stronger and more uniform but higher cost. Contact us to discuss which is right for your application.

Can stainless steel honeycomb be supplied with face sheets (sandwich panels)?

Yes. We can supply bare honeycomb core only, or bonded sandwich panels with stainless steel, aluminum, or carbon fiber face sheets. Please specify your requirement when requesting a quote.

Can I use stainless steel honeycomb outdoors?

Yes. Stainless steel — especially grade 316 — has excellent corrosion resistance and holds up well outdoors. It's commonly used in building facades, cladding, and marine environments.

Can you cut it to custom shapes?

Yes. We can cut honeycomb blocks to rectangles, circles, or custom contours per your drawing.

LATEST RECOMMENDED

SS1219 316L Stainless Steel Strip (SS316L Strip)

PC1316 Precision Casting (Stainless Steel)

MF1446 Stainless Steel Fiber

SS1973 Stainless Steel 316 Foam (SS316 Foam)

MF2361 Stainless Steel Fiber Sintered Felt

CR2506 202 Stainless Steel Wire Rope

CR2509 304 Stainless Steel Wire Rope

CR2510 308 Stainless Steel Wire Rope

GET A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United States

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Attach Drawing:

Drop files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Material	Stainless Steel (304, 316, 321, or custom)
Foil thickness	0.05 – 0.2 mm
Cell size (diameter of inscribed circle)	0.8 – 30 mm
Typical density	100 – 500 kg/m^3
Compressive strength (varies with density)	5 – 25 MPa
Max service temperature (304/316)	~815°C (1500°F)
Max service temperature (321)	~870°C (1600°F)
Standard sheet size	Up to 2000 × 1000 mm (custom sizes available)
Shape	Rectangle, round, or custom contour
Finish options	As-rolled, electroless nickel plating, tin plating, powder coating, paints

Material	Typical Density (kg/m^3)	Compressive Strength (MPa)	Max Service Temp. (°C / °F)	Key Characteristics & Primary Applications
Aluminum Alloy 3003	50 - 200	1 - 7	~175 / 350	General-purpose, excellent strength/weight. Applications: Aerospace panels, satellite structures, partitions.
Carbon Steel	300 - 900	5 - 30	~400 / 750	High strength, low cost, poor corrosion resistance. Applications: Ballistic armor, low-cost industrial cores.
Stainless Steel	100 - 500	5 - 25	~815 / 1500	Good strength, excellent corrosion resistance. Applications: High-temp filters, aerospace, marine structures.
Brass	300 - 800	3 - 15	~200 / 400	Good corrosion resistance, decorative, and antimicrobial. Applications: Architectural, heat exchangers, filters.
Hastelloy X	200 - 600	5 - 25	~1175 / 2150	Excellent oxidation resistance, good strength. Applications: Gas turbine combustors, high-temp heat exchangers.
Hastelloy S	200 - 600	5 - 25	~980 / 1800	Excellent thermal stability, low thermal expansion. Applications: Aerospace, thermal processing equipment.
Inconel Honeycomb	200 - 600	5 - 30	~1095 / 2000	Outstanding oxidation & creep resistance. Applications: Aircraft engine parts, high-temperature panels.
Haynes 214	200 - 600	5 - 25	~1200 / 2200	Exceptional oxidation resistance due to Al formation. Applications: High-temperature catalyst supports.
Haynes 224	200 - 600	5 - 25	~1200 / 2200	Excellent oxidation resistance, good formability. Applications: High-temperature combustion systems.
Haynes 230	200 - 600	5 - 25	~1150 / 2100	High strength and good oxidation resistance. Applications: Industrial furnaces, heat treatment equipment.
Haynes 233	200 - 600	5 - 25	~1150 / 2100	High strength and phase stability. Applications: Advanced aerospace gas turbine components.

Material	Stainless Steel (304, 316, 321, or custom)
Foil thickness	0.05 – 0.2 mm
Cell size (diameter of inscribed circle)	0.8 – 30 mm
Typical density	100 – 500 kg/m^3
Compressive strength (varies with density)	5 – 25 MPa
Max service temperature (304/316)	~815°C (1500°F)
Max service temperature (321)	~870°C (1600°F)
Standard sheet size	Up to 2000 × 1000 mm (custom sizes available)
Shape	Rectangle, round, or custom contour
Finish options	As-rolled, electroless nickel plating, tin plating, powder coating, paints
