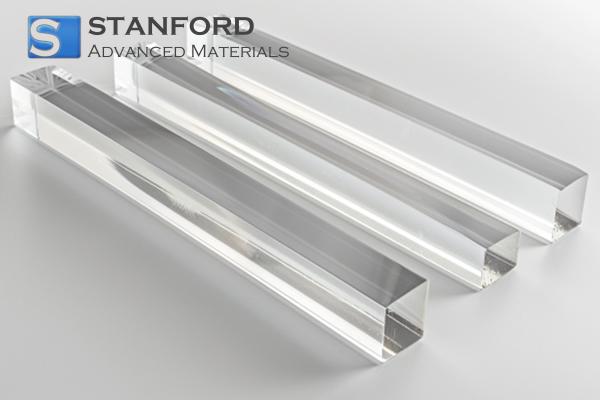

Periodically Poled Lithium Niobate Crystal Description:

Based on the quasi-phase matching (QPM) theory, Lithium Niobate (LiNbO₃, LN) crystals can be fabricated with periodically inverted domains, a structure known as Periodically-Poled Lithium Niobate (PPLN). This structure compensates for phase mismatch caused by dispersion, thus maximizing the effective nonlinear coefficient of the crystal. The periodic domain inversion enhances the crystal's nonlinear optical properties, significantly improving its frequency conversion performance.

PPLN crystals are widely used for applications such as second-harmonic generation (SHG) and optical parametric amplification (OPA) at wavelengths greater than 1000 nm, particularly for 1064 nm pump light. These crystals can also achieve quasi-phase matching, leading to highly efficient nonlinear optical processes. Thanks to their large electro-optic and acousto-optic coefficients, LiNbO₃ crystals are commonly used in various advanced technologies, including Pockels cells, Q-switches, phase modulators, waveguide materials, and acoustic wave devices.

Periodically Poled Lithium Niobate Crystal Specifications:

Chemical and Structural Properties

Nonlinear and Electro-Optical Properties

Thermal and Electrical Properties

Product Specification

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Periodically Poled Lithium Niobate Crystal Applications:

Frequency Conversion:

PPLN crystals are primarily used in frequency conversion processes, such as second-harmonic generation (SHG), where they can efficiently double the frequency of an input laser, particularly for wavelengths above 1000 nm.

Optical Parametric Amplification (OPA):

Due to their quasi-phase matching ability, PPLN crystals are ideal for optical parametric amplification, enabling high-gain amplification in optical systems, including for 1064 nm pump light.

Pockels Cells and Q-Switches:

Thanks to their large electro-optic coefficients, PPLN crystals are widely utilized in the fabrication of Pockels cells, which are crucial for controlling the polarization state of light, and Q-switches, which are essential for pulse shaping in laser systems.

Phase Modulators:

PPLN crystals are used as phase modulators in various optical communication and laser systems, where precise control over the phase of light is needed for optimal performance.

Waveguide Materials:

The unique properties of PPLN make them suitable for waveguide applications, especially in integrated optics and photonic circuits, where the crystal can support a wide range of nonlinear optical processes.

Acoustic Wave Devices:

PPLN's acousto-optic capabilities are also valuable in creating high-performance devices that convert electrical signals into acoustic waves, such as in surface acoustic wave (SAW) devices and other acousto-optic modulators.

Packaging

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Clean bags, Single or Multi-chip Wafer Box, Carton, Wooden Box, or Customized.
