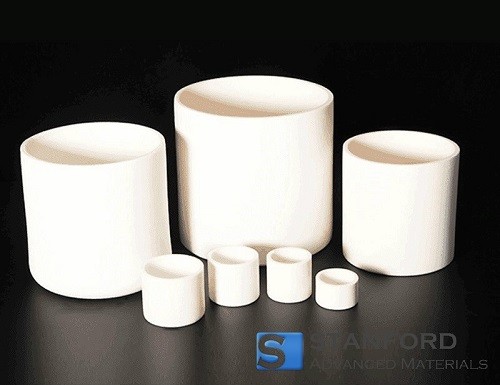

Aluminum Oxide Crucible Alumina Crucible Al2O3 Description

Aluminum oxide crucible is usually used in the laboratory to contain chemical compounds when heated to extremely high temperatures. Alumina is an ideal ceramic material for laboratory applications especially within high-temperature working conditions that demand contamination-free results. And crucibles and their covers are made of high temperature-resistant materials, usually including ceramic crucible, alumina crucible, or an inert metal crucible.

Stanford Advanced Materials provides alumina crucibles with high purity, tight dimensional tolerance, and competitive prices. Our high purity alumina products fulfill most of the requirements.

Aluminum Oxide Crucible Alumina Crucible Al2O3 Specification

The following crucibles are available standard crucibles used in Stanford Advanced Material. Other custom sizes are on request.
The crucible product code is composed as follows:

Abbreviations and code

* C conical shaped crucibles
* D double wall crucibles
* Ø lip

Code: Al2O3 1-12 Capacity:1cm3	Code: Al2O3 1-14 Capacity:1cm2
Code: Al2O3 1-20 Capacity: 1.5 cm³	Code: Al2O3 2-16 Capacity: 2cm³
Code: Al2O3 5-30 Capacity : 30 cm³	Code: Al2O3 10-22 Capacity : 22 cm³
Code: Al2O3 10-32 Capacity : 32 cm³	Code: Al2O3 C12-36 Capacity: 36cm³
Code:Al2O3 C16-36 Capacity: 36 cm³	Code:Al2O3 C25-33 Capacity: 25 cm³
Code:Al2O3 C35-54 Capacity: 35 cm³	Code:Al2O3 C230-98 Capacity: 230 cm³
Code:Al2O3 C85-41 Capacity: 85 cm³

Aluminum Oxide Crucible Alumina Crucible Al2O3 Applications

Alumina Crucible can be used for various laboratory metal and non-metal analysis. It can also be used for burning color materials, toners, frits, pigments, luminous materials in shuttle kiln and push plate kiln.

Product Comparison

Alumina Crucible Packing

Our products are packaged in customized cartons of various sizes based on the material dimensions. This product contains magnets securely packed with shielding materials to minimize magnetic field leakage. All packages are reinforced with protective layers to ensure safe handling and compliance with international transport regulations. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customized.

Aluminum Oxide Crucible Alumina Crucible Al2O3 FAQs

Q1: What are the typical applications of Aluminum Oxide Crucibles?

Laboratories: For melting, mixing, and heating materials in high-temperature experiments.

Metallurgy: Used in the melting of metals and alloys.

Chemical Analysis: For sample preparation and as containers in chemical reactions.

Ceramics: As molds or supports in sintering processes.

Glass Manufacturing: For testing or holding molten glass.

Q2: What shapes and sizes are available for Aluminum Oxide Crucibles?

They are available in various shapes such as cylindrical, conical, or rectangular. Sizes range from a few milliliters to several liters, depending on the application.

Q3: Can Aluminum Oxide Crucibles be customized?

Yes, they can be customized in terms of shape, size, and purity levels to meet specific application requirements.
