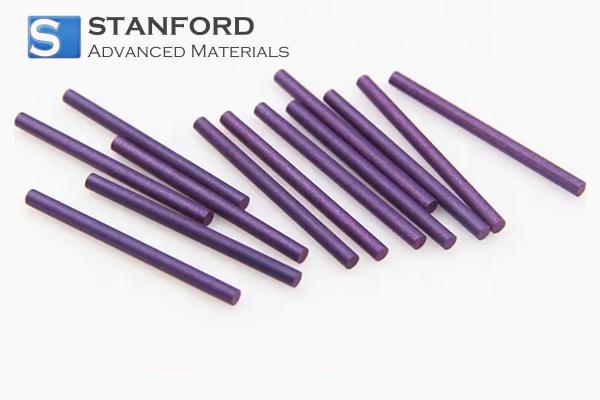

Lanthanum Hexaboride Rod Description

Lanthanum Hexaboride Rod (LaB6 Rod) is an inorganic chemical. With melting point 2528 K, LaB6 is a refractory ceramic material, which is insoluble in water or hydrochloric acid and very stable in a vacuum. Stoichiometric samples are colored intense purple-violet, while boron-rich ones (above LaB6.07) are blue. Ion bombardment changes its color from purple to emerald green. LaB6 is a superconductor with a relatively low transition temperature of 0.45 K.

Lanthanum Hexaboride Rod Specification

Lanthanum Hexaboride Rod Applications

* Thermionic emission (cathode)
* Plasma source for plasma enhanced coating(PECVD)
* Vacuum electron beam welding machine
* Electron beam surface reforming device
* Electron beam lithography device
* Transmission electron microscope
* Scanning electron microscope
* Surface analysis device
* Radiotherapy devices

Lanthanum Hexaboride Rod Packaging

SAMs’ LaB6 ceramics are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Prototyping service is also available for other ceramics material

Alumina

Aluminum Nitride

Boron Nitride

Silicon Carbide

Silicon Nitride

Zirconia

Related articles:

What is Lanthanum Hexaboride Electrode

FAQs

1. What are LaB₆ rods used for?

Electron sources in SEM, TEM, X-ray tubes, and e-beam equipment.

High-temperature cathodes with low work function (~2.6–2.8 eV).

Thermal or electrical components in vacuum or plasma systems.

2. How to store and handle LaB₆ rods?

Store in dry or inert atmosphere, away from moisture.

Avoid touching or contaminating the emitting surface.

Handle gently — material is brittle.

Use in clean, high-vacuum environments for best performance.

3. Customization Information

Available Shapes: Rods, bars.

Typical Diameters: 1 mm – 25 mm (custom sizes available).

Length Range: Per requirement.

Surface Finish: As-sintered or polished.

Purity Grades: 99.5% – 99.9% LaB₆.

OEM Service: Custom dimensions, machining holes or tapers for electron guns, cathode assemblies, or special fixtures.
