Pyrolytic Boron Nitride Description

Pyrolytic boron nitride (PBN) has raw materials with much higher purity level than normal boron nitride ceramic. It is a high purity material with no porosity which could be deposit on all kinds of graphite shapes by chemical vapor deposition (CVD). Although pyrolytic boron nitride could be deposited on various materials, it is usually used on graphite only, since the temperature of this CVD process is extremely high and the atmosphere is corrosive. PBN coated graphite materials significantly enhanced the performance of the surface. Better purity, lower porosity, and roughness. PBN material could also stand high temperature (2500`C). As the coated products have great performance in high vacuum and high-temperature circumstance, they are ideal for applications in the semiconductor industry.

Pyrolytic Boron Nitride Specification

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Pyrolytic Boron Nitride Applications

– Crucibles for crystal growth
– Break rings for horizontal casting machine
– Insulators for high-temperature furnace
– Electric insulators in vacuum system
– Feedthrough for high voltage equipment

Pyrolytic Boron Nitride Packing

Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.

FAQs

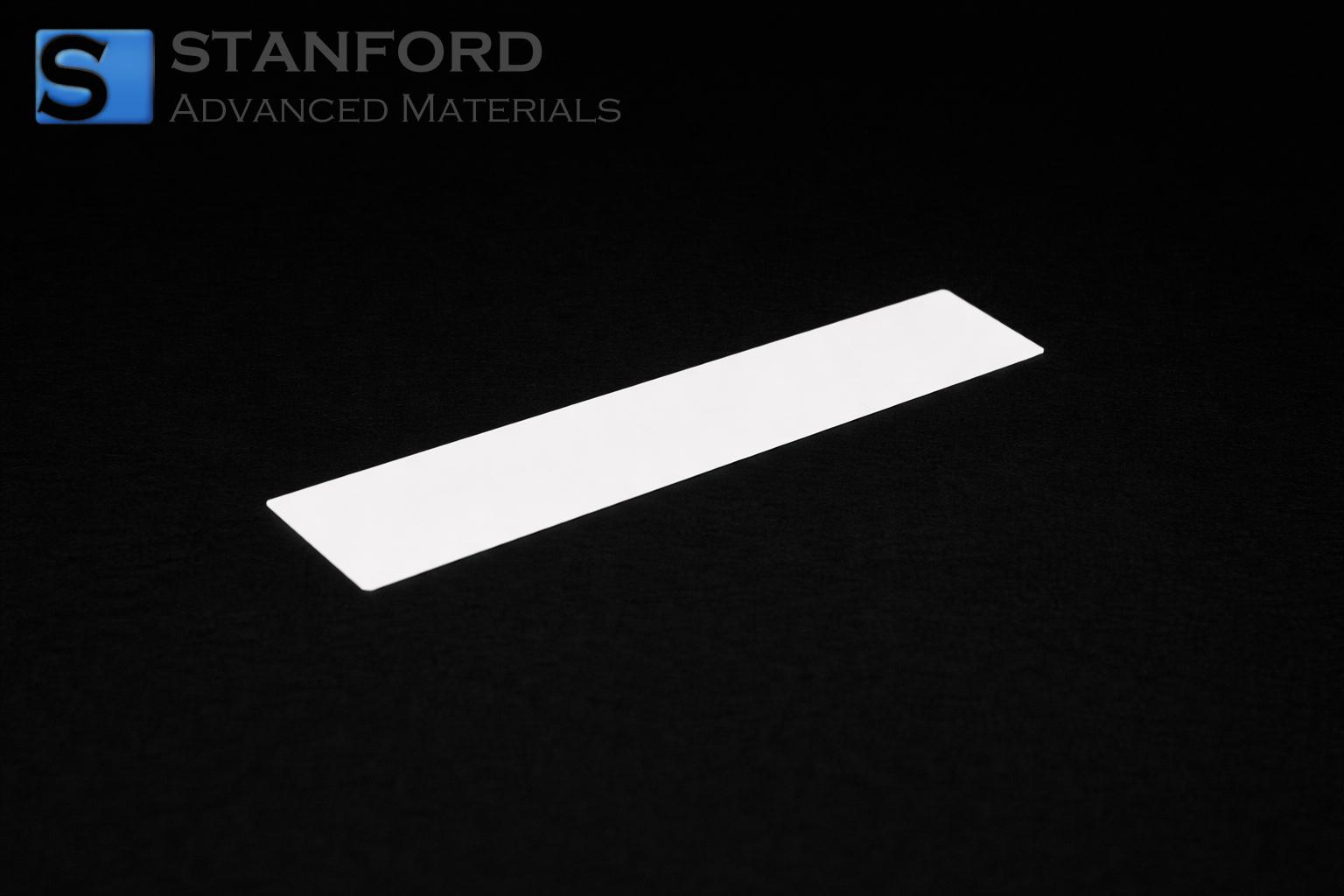

Q1: What is a Pyrolytic Boron Nitride (PBN) strip?
A: A PBN strip is a flat, rectangular component made from pyrolytic boron nitride through chemical vapor deposition (CVD). It offers excellent thermal stability, high purity, and electrical insulation, making it ideal for use in high-temperature and high-purity environments.

Q2: What are the key properties of PBN strips?
A:

Ultra-high purity (typically >99.9%)

Excellent thermal stability (up to 1800°C in vacuum)

High in-plane thermal conductivity

Excellent dielectric strength and electrical insulation

Chemically inert and non-wettable to most molten metals

Smooth, non-porous surface finish

Q3: What are the typical applications of PBN strips?
A:

Insulating components in semiconductor processing equipment

Thermal management layers in high-temperature or vacuum systems

Support structures or liners in crystal growth and MOCVD equipment

High-purity contact pads or carrier plates in analytical instruments

Protective barriers in reactive or corrosive environments
